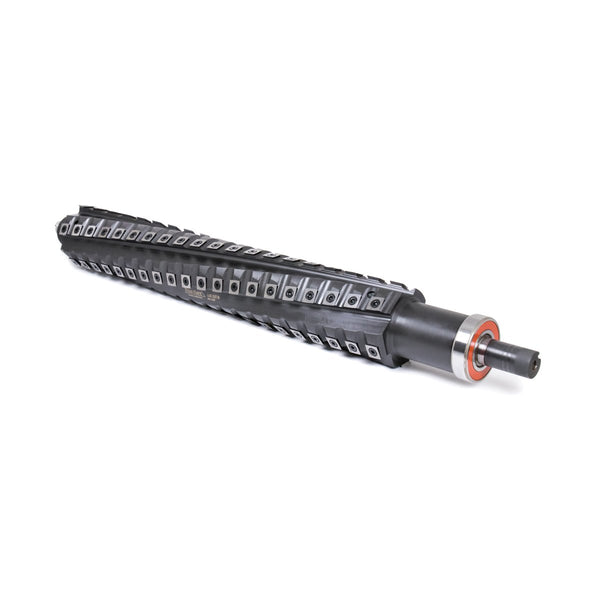

20" General 4-Post Planer -- Titan Lux Cut III Journal Head

Sku: MSJ-G20

Type - Titan Lux Cut III Journal Spiral / Helical Cutterhead
Fits - 20" General* 4-Post Planer

* Bridgewood BW 20P, Carba-Tec CTJ-508, CT-508, Enco 150-4245, General 30-300, Grizzly G-0454, G-1033, Jet JWP-208-1, Northstate 20", Powermatic 208, 209, Shop Fox W1683, W1718, W1754, W1747, Steel City 40270, Sunhill CT-508, Transpower AP-200A, Woodstock W1683, Woodtech 924083, Yorkcraft YC20P

    • Stocked and ready to ship!
    • Reduce noise - A 25 decibel average sound reduction is common.
    • Reduce grain tear-out and fuzzing
    • Low cost operation - Four sided carbide knives can last up to 50 times longer than standard steel blades.

    Heads come with the inserts installed and ready to run. Also included: bearings, wrenches, spare knives (10) and spare screws (10).

    The Lux Cut III spiral heads by Titan Knife are an excellent upgrade for planers and jointers. The design incorporates 4 edge carbide insert knives with a slight radius on the cutting face; set at a shear angle for better cutting and longer insert life. The unique insert design allows for simple and accurate installation and rotation. Heads use our Lux Cut 15mm x 15mm x 2.5mm (Part# IC-251515-DL ) carbide insert knife and screw. We offer the option of purchasing additional knives and screws together or just the screws.

    Lux Cut Heads cannot ship USPS Priority Mail. Please choose from other shipping options when ordering.
