Lux Cut Journal Heads

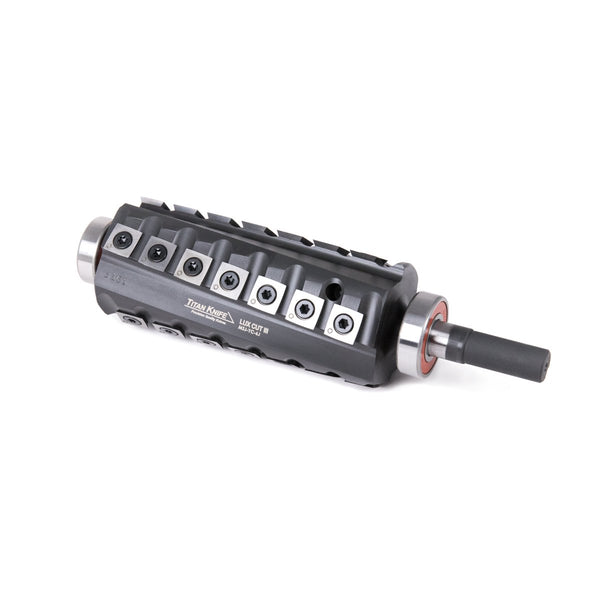

6" Yorkcraft YC-6J Jointer (64mm cutting dia.) -- Titan Lux Cut III Journal Head

Sku: MSJ-YC-6J

Type - Titan Lux Cut III Journal Spiral / Helical Cutterhead
Fits - 6" Yorkcraft YC-6J Jointer (64mm cutting dia.), Enco 150-5100, Delta 37-195, 37-190, 37-196, 37-275x, 52-858, 37-866x, 52-866x

  • Stocked and ready to ship!
  • Reduce noise - A 25 decibel average sound reduction is common.
  • Reduce grain tear-out and fuzzing
  • Low cost operation - Four sided carbide knives can last up to 50 times longer than standard steel blades.

Heads come with the inserts installed and ready to run. Also included: bearings, wrenches, spare knives (5) and spare screws (5).

The Lux Cut III spiral heads by Titan Knife are an excellent upgrade for woodworking planer and jointer machines. The design incorporates 4 edge carbide insert knives with a slight radius on the cutting face; set at a shear angle for better cutting and longer insert life. The unique insert design allows for simple and accurate installation and rotation. Heads use our Lux Cut 15mm x 15mm x 2.5mm (Part# IC-251515-DL ) carbide insert knife and screw. We offer the option of purchasing additional knives and screws together or just the screws.

Lux Cut Heads cannot ship USPS Priority Mail. Please choose from other shipping options when ordering.
