Lux Cut Journal Heads

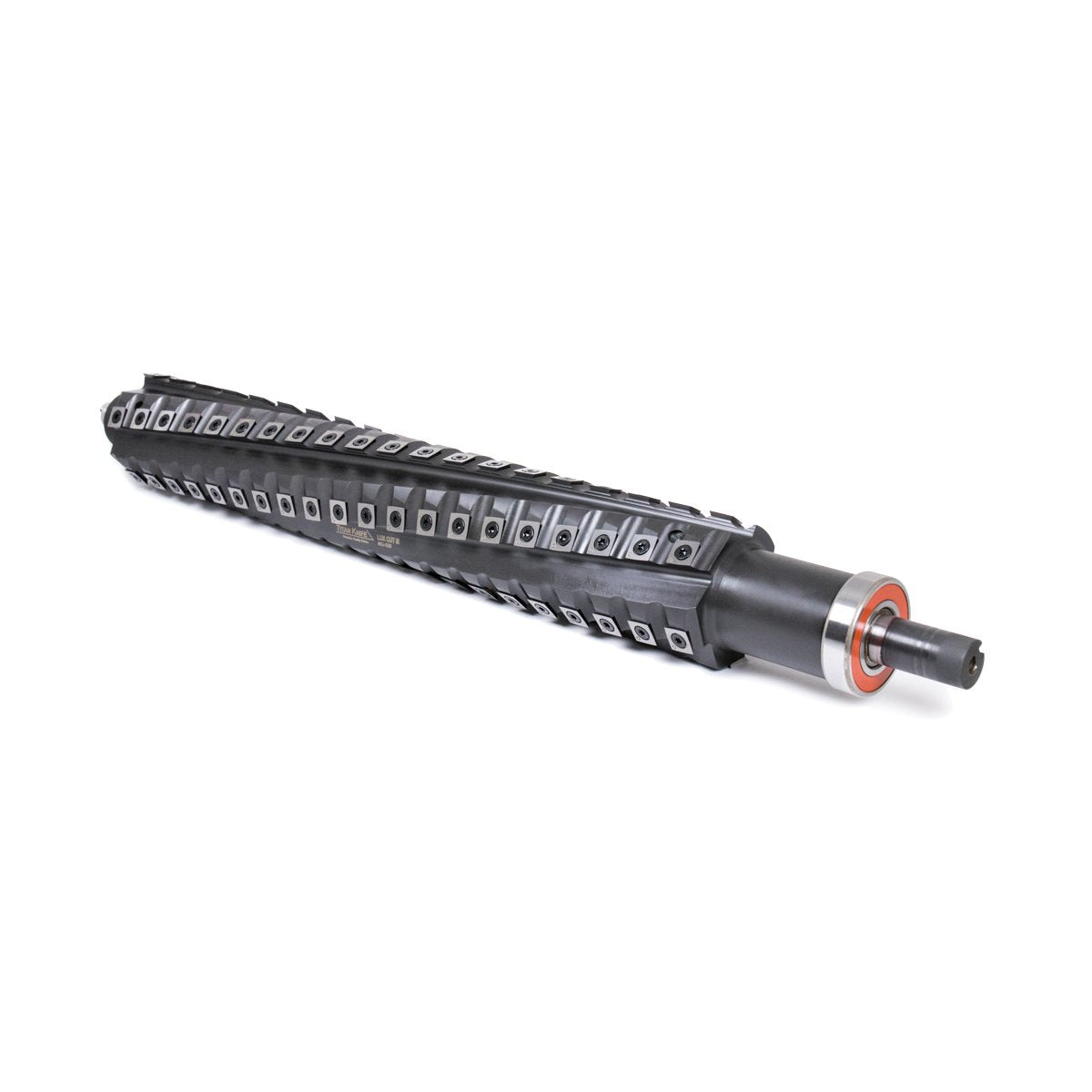

20" Generic 4-Post Planer -- Titan Lux Cut III Journal Head

Sku: MSJ-G20
$1,596.51

Type - Titan Lux Cut III Journal Spiral / Helical Cutterhead
Fits - * Most common 20" 4-Post Planers

* Bridgewood BW 20P, Carba-Tec CTJ-508, Carba-Tec CT-508, Enco 150-4245, General 30-300, Grizzly G-0454, Grizzly G-1033, Jet JWP-208 (-1), King Canada KC-520C, Lobo WP-0020, Northstate 20", Powermatic 208, Powermatic 209, Shop Fox W1683, Shop Fox W1718, Shop Fox W1754 (s), Shop Fox W1747, Steel City 40270, Steel City 40295, Steel City 40285, Steel City 40280, Sunhill CT-508, Transpower AP-200A, Woodstock W1683, Woodtech 924083, Yorkcraft YC20P

    • Stocked and ready to ship!
    • Reduce noise - A 25 decibel average sound reduction is common.
    • Reduce grain tear-out and fuzzing
    • Low cost operation - Four sided carbide knives can last up to 50 times longer than standard steel blades.

    Heads come with the inserts installed and ready to run. Also included: bearings, wrenches, spare knives (10) and spare screws (10).

    The Lux Cut III spiral heads by Titan Knife are an excellent upgrade for woodworking planer and jointer machines. The design incorporates 4 edge carbide insert knives with a slight radius on the cutting face; set at a shear angle for better cutting and longer insert life. The unique insert design allows for simple and accurate installation and rotation. Heads use our Lux Cut 15mm x 15mm x 2.5mm (Part# IC-251515-DL ) carbide insert knife and screw. We offer the option of purchasing additional knives and screws together or just the screws.
