Spiral Insert Heads

6" (150mm) CL x 140mm OD x 1-13/16" Bore -- Spiral Head - 6-Row

Sku: MS14066F

Outer Diameter (Body Dia) - 140 mm
Cutting Length - 6" (150 mm)
Bore - 1-13/16"
Rows of Knives - 6
Brand - Titan Knife

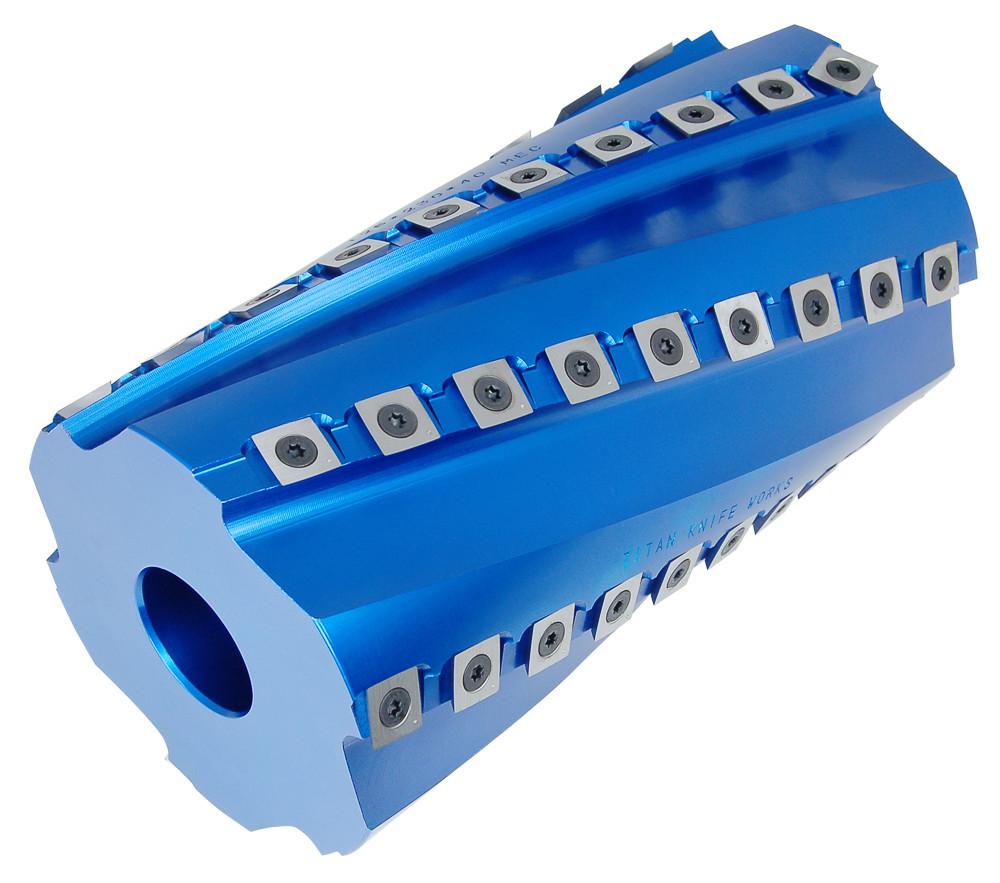

Titan Spiral insert knife cutterheads make constant contact with the surface of the material in a helical pattern offering reduced cutting noise - typically 20 decibels less. Each long wearing carbide knife has four edges that can be dulled before replacement. These moulder cutter heads improve material finishes on wood cross grain, lower long term tooling cost, and eliminate sharpening costs. Our molder spiral heads offer special radius edge inserts set at a shear angle to reduce any chance of knife corners marking your material. Spiral Heads are made from 7071-T6 high strength aircraft aluminum and are hard anodized making the cutterhead strong and light. They are dynamically balanced to 8,000 rpm. Heads include a set of carbide knives installed and ready to run. Heads also include a torx wrench for turning and replacing the knives. Titan Spiral Heads use 15 x 15 x 2.5 - 8 radius insert knives.

This head cannot ship USPS Priority Mail. Please choose from other shipping options when ordering.
