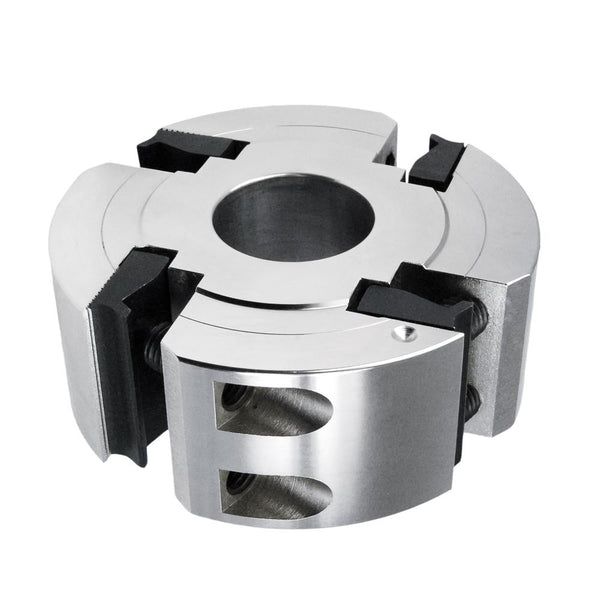

Corrugated Straight Bore Moulder and Shaper

137OD x 130mm Length - Straight Bore - Single Hook Moulder Cutterhead - 4 Knife

Sku: MH-137-4-130-12

Outer Diameter - 137 mm (5.4")
Cutting Length - 130 mm (5.12")
Bore - 1-13/16" or 2-1/8" (Choose One)
Corrugated Knife Pockets - 4
Cutting Angle (Hook) - 12 degree or 20 degree (Choose One)
Brand - Titan Knife

Weinig, Wadkin, SCMI, IIDA, Leadermac, Woodmizer, Silver, and other Mid-Sized Moulders:
The S137 line is designed for use on European and Asian imported moulders that have larger spindle diameters. All heads are precision CNC machined from heat treated high strength hardened alloy steel and dynamically balanced (ISO grade quality 1.0) to operate at speeds up to 9,000 rpm. H7 precision bore tolerance is used to decrease radial run-out and provide the smoothest cut possible with a straight bore head. Heads are made to exceed the most stringent European OEM standards allowing you to produce smooth material finish with years of trouble free use. Knives and filler wedges sold separately.
