Planer Journal Heads

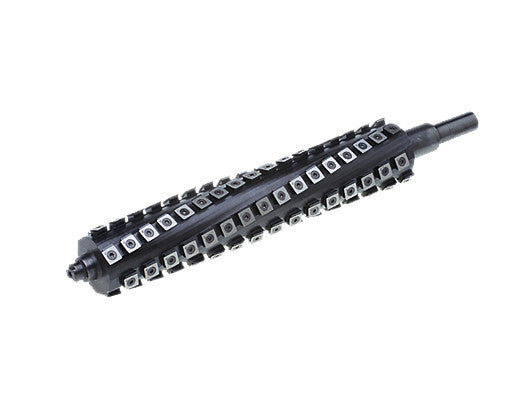

General 30-300 20" - Generic 20" 4-Post - Planer Journal Head

Sku: JHP20-GENRL-G20-4POST
$1,427.93

Type - Journal Cutterhead, Generic 20" 4-Post
Fits - General 30-300 20" Planer

Consider our NEW Lux Cut III version of this head which is stocked and ready to ship!  CLICK HERE TO READ MORE...


The combined advantage of shear and helix knife cutting by replacing your traditional straight knife cutterhead. Shear and stagger cut is superior to single straight cuts. Replace a few inexpensive small knives instead of a large planer knife if you happen to hit a nail or staple or when dull. Experience the knife replacement savings, quieter cutting, reduced tearout, large gullets to remove wood chips, and clean cutting of a journal head for your planer or jointer. Journal heads are made to order and can require 12+ weeks for delivery. -- Heads use 15mm x 15mm x 2.5mm radius corner and 100mm radius face (Part# IC-2514144-4100) Byrd style carbide insert knives and use (Part# MS-BS-S) Byrd journal head screws. Heads come with set of knives and screws.

Call to order: 541-302-1366
