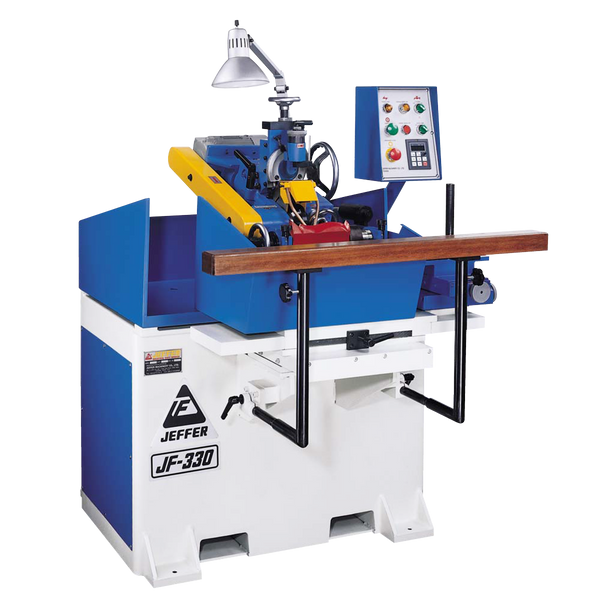

Jeffer JF-330A Profile Knife Grinder

Sku: JF-330A
$19,850.00

Precision wood profiles require a precision profile grinder.

Features:
Turret Stylus System
Axial Constant System

We offer the Jeffer JF-330A profile grinder for 1:1 profile grinding on all your moulding and planing knives. Designed much like the German profile grinders that utilize a template, with additional features at a much more competitive price. We sell this model loaded with all the extra features for no extra charge. The larger capacity is able to sharpen heads up to 12” long x 12” diameter. Standard  features include; stainless steel flood coolant tank w/ 1/8 hp pump, .0002" tolerance cross roller bearing table, choice of mandrel diameter sizes, side clearance tilting, diamond point side dressing, 3hp adjustable grinding wheel RPM, & more! Uses CBN and Diamond wheels hubs, up to 10" wheel diameters. FOB Portland, Or.

Call for more details and for accurate shipping quotes on this product.

Specifications:
Grinding Capacity -- Cutters 12" Long x 12" Diameter
Work Table (Max.) -- Left to Right 12.6" Travel
Back-Front -- 5" of Travel In / Out
Grinding Wheel Size (Standard) -- 225 Diameter x 60mm Bore
Optional Grinding Wheel Size -- 10" Diameter x 1.25" Bore
Side Clearance Tilt -- 5°, 10°, & 15° Left & Right
Back Relief Angle Adjusts -- 10° to 30° Adjustable
Grinding Wheel RPM -- 1,500 to 4,200 RPM
Wheel Motor -- 3 HP Seimens TEFC (1/6 HP Coolant Pump)
Power Supply -- 240 Volt / 3 PH (480V Optional) Teli Electronics
Grinder Dimensions -- 41" L x 48" W x 54" H
Crate Size -- 52" L x 52" W x 62" H
Gross Weight -- 2,420 LBS / 2,070 LBS Net
Arbor Mandrel Diameters -- 1-1/4", 1-1/2", 1-13/16", 2-1/8", 40mm, etc.
