Knife-Lock Carbide System

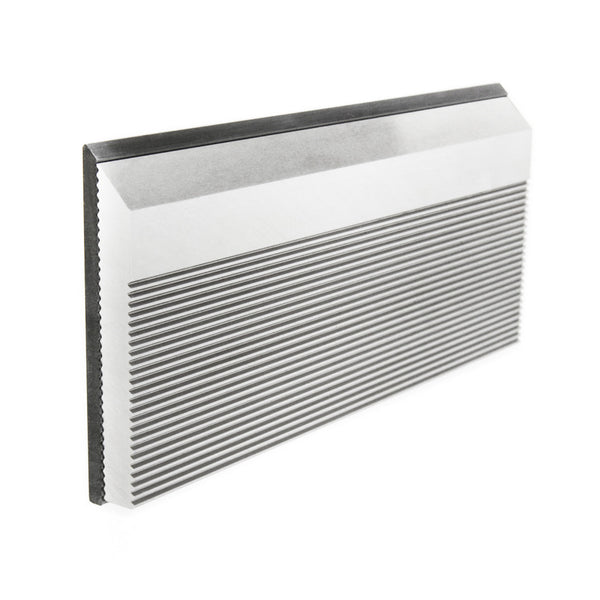

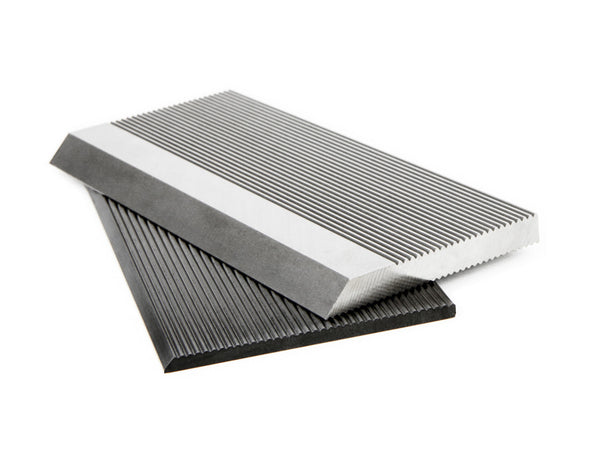

40mm x 38mm - Knife-Lock Corrugated Moulder Knife System

Sku: US403

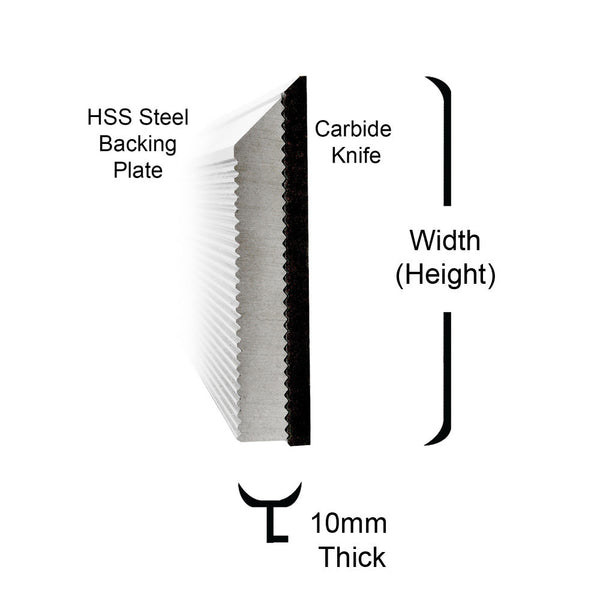

Knife-Lock - Carbide Knife with HSS Steel Backer Plate
Cut Length - 40 mm
Width - 38 mm (1-1/2") Height
Brand - Titan Knife

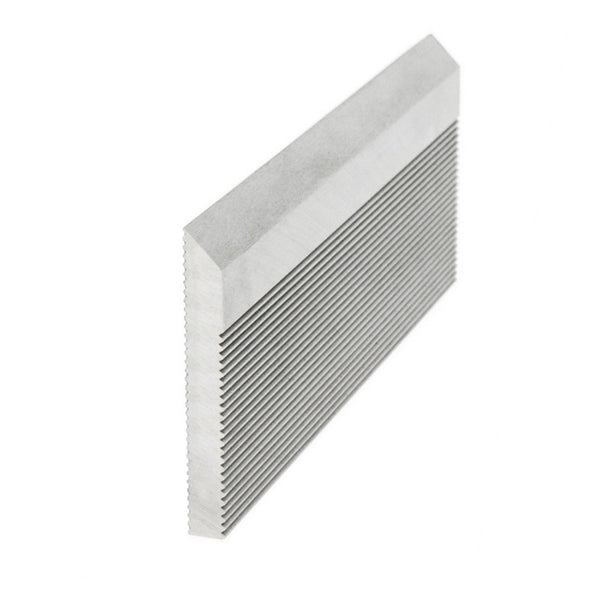

Knife-Lock is a high precision carbide moulder knife system for millwork manufactures who cut glue lines, hardwoods, and Medium Density Fiberboards (MDF). Knife-Lock knives are compatible with your existing Wisconsin Knife™ Style steel backing plates. The carbide knife locks and indexes up on a corrugated High Speed Steel backing support plate as it is resharpened. Polished to mirror finish, our C3-Micro Grain carbide knives offer finer material wood finishes and longer production runs while providing longer diamond grinding wheel wear. The backing plates are a one time purchase, only replacement carbide knives are needed as they are sharpened away. Our carbide knives are also 100% compatible with your existing backing plates. Knives and backing plates are CNC ground on creep feed crush grinders for precise locking, closer balance tolerances from knife to knife, and less initial grinding. Knives are also offered with optional "Thin Film Diamond" Coating (DVD) (Call for price) which increases wear life up to 4 times. Compare our price, selection, quality, and our responsive order delivery and you will see why so many MDF millworkers use Knife-Lock.
