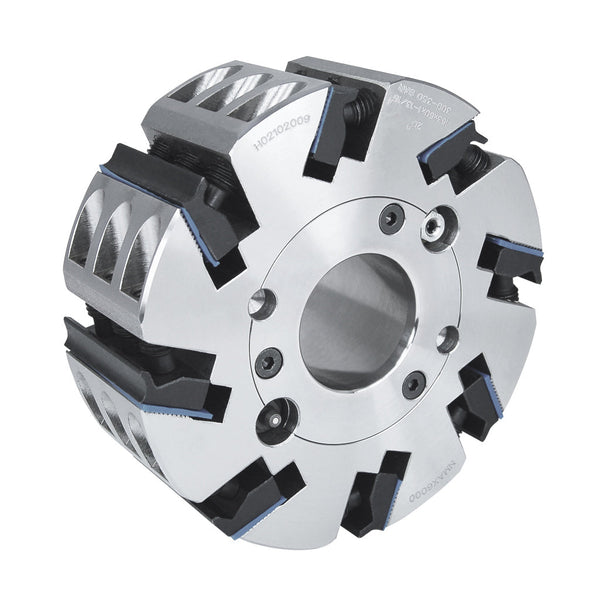

Corrugated Knife HydroLock

163OD x 230mm Length - 8 Kn - Hydro-Lock Bore - Moulder Cutterhead

Sku: MH163-8-230HL
$1,689.95

Outer Diameter - 163 mm (6.4")
Cutting Length - 230 mm (9.05")
Bore - 1-13/16" or 2-1/8" or 50 mm (Choose One)
Corrugated Knife Pockets - 8
Cutting Angle (Hook) - 12 degree or 20 degree (Choose One)
Brand - Titan Knife

Weinig, Wadkin, SCMI, IIDA, Leadermac, Waco, & other High Production Moulders: These heads are used on production moulders with feed rates up to 350 feet per min. Heads are precision made to run to 6000 rpm and are dynamic balanced to ISO Grade quality 1.0. Heads have all the industry standard features and metric hardware. Heads are made to order - you choose the cutting angle. We can add axial constant 7mm wide side hubs to the heads. Additional features and custom designs can be added like additional outside diameter grease fittings, and deeper knife pockets, notched gibs, and square head gib bolts. Knife pockets are designed to accept knife steel from 3/16" thick up to 10mm thick corrugated back molder knife stock. They have build-in hydro-sleeves made from high yield strength alloy steel to avoid deforming the sleeves over years of use and the added benefit of precision tool centering for smoother cutting on non-jointed machines. To avoid damage always use safety lock collars at all times on hydraulic locking bore cutter heads. Do not exceed max. pressure on head, do not pressurize heads on an undersized spindle, or spindles with keyways. Check pressure daily. Call for other custom bore prices. Note - OD grease fittings are on hydro-heads 150mm and longer for easier access.

MADE TO ORDER. ALLOW 6-8 WEEKS LEAD TIME.
