9300 Series QL Heads

140OD x 150mm Length x 1-13/16" Bore -- Quick-Lock 9300 Series Moulder Head

Sku: QL140-150-9300-1.813
$837.86

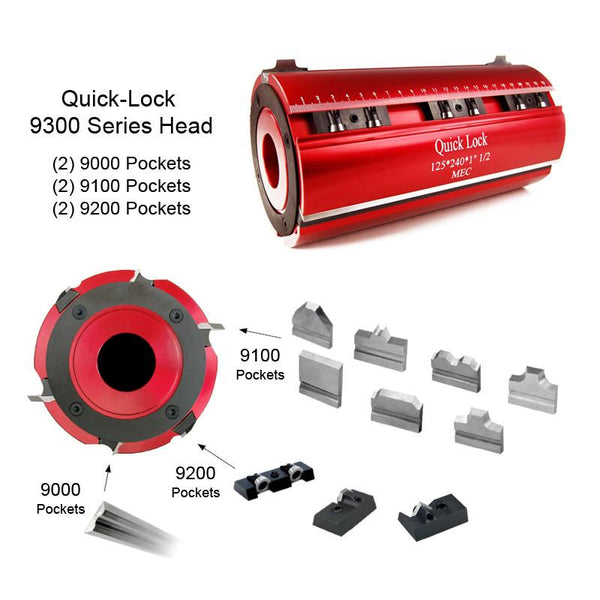

Type - Quick-Lock Series 3 (9300) - 6 total pockets: 2 planing pockets, 2 profile pockets, 2 knife holder pockets for inserts

Outer Diameter - 140 mm
Cutting Length - 150 mm
Bore - 1-13/16"
Brand - Titan Knife

Replacement Quick-Lock Planer Knives available on our website here.

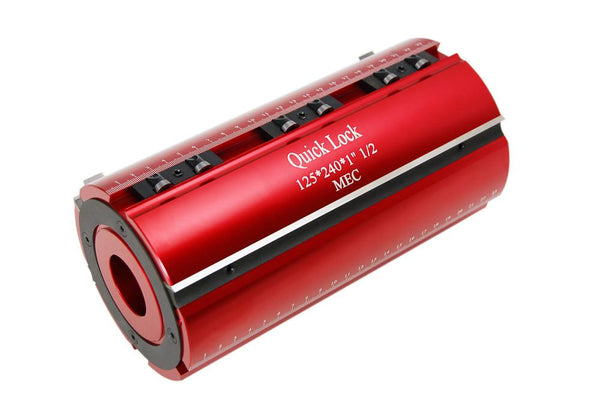

The ultimate system for efficiency and versatility. Surface and profile with the same cutter head. Our Quick-Lock Series 3 (9300) heads offer a total of 6-knife pockets (2 + 2 + 2); two surfacing knives (9000 style), two pockets for profile knives (9100 style), and two additional pockets that accept profile knife holders and low cost inserts for profiles (9200 style). Advantages include quick knife setup, no resharpening needed , long tool life carbide, affordable replacement knives and extraordinary surface finish in a lightweight aluminum alloy head dynamically balanced to 8,000 rpm. Cutterhead prices include set of T1-HSS Planer Knives. Call for hydro-bore options.
